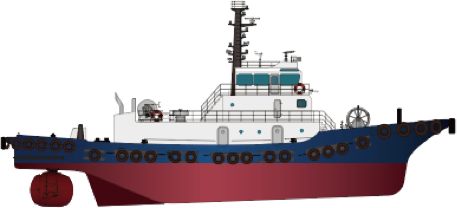

GENERAL ARRANGEMENT A

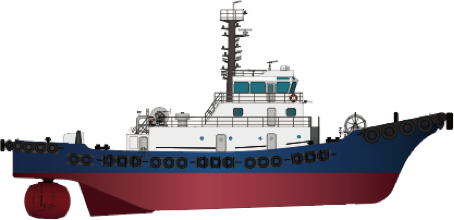

GENERAL ARRANGEMENT B
L.O.A : 41.50 m
BREADTH : 11.00 m
DRAUGHT : 3.5M
GROSS TONNAGE : 396 GT
MAX.SPEED : 13.00 knots
BP, MAX : 85 ton
MAIN ENGINES : YANMAR 8EY26W / 3,481PS x 750RPM 2SETS
PROPULSION : KONGSBERG US 255 P30 FP TWIN
2,560kW x 750 RPM (100% MCR)
GENERATOR : 168kW(210KVA) x AC225V x 60Hz x 3PH x 1800RPM
ACCOMMODATION : 6 persons
FUEL CAPACITY (m3) : 83m3
FRESH WATER CAPACITY (m3) : 73.6m3
L.O.A : 38.20 m
BREADTH : 10.30 m
DRAUGHT : 4.5M
GROSS TONNAGE : 396 GT
MAX.SPEED : 13.00 knots
BP, MAX : 64 ton
MAIN ENGINES : YANMAR 6EY26W / 2,450PS x 750RPM 2SETS
PROPULSION : KONGSBERG US 205 P20 FP
1,802kW x 750 RPM (100% MCR)
GENERATOR : 168kW(210KVA) x AC225V x 60Hz x 3PH x 1800RPM
ACCOMMODATION : 6 persons
FUEL CAPACITY (m3) : 81m3
FRESH WATER CAPACITY (m3) : 27.45m3
